TPS28225TDRBRQ1 Half-Bridge Gate Driver IC Non-Inverting 8-SON (3x3)

Brand Name : original

Model Number : TPS28225TDRBRQ1

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Amplifier Type : Current Sense

Number of Circuits : 1

Output Type : Single-Ended

Slew Rate : 0.4V/µs

Gain Bandwidth Product : 80 kHz

Current - Input Bias : 28 µA

Voltage - Input Offset : 5 µV

Current - Supply : 65µA

Contact Now

TPS28225TDRBRQ1 Half-Bridge Gate Driver IC Non-Inverting 8-SON (3x3)

Specifications of TPS28225TDRBRQ1

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Power Management (PMIC)
Gate Drivers
Mfr Texas Instruments
Series Automotive, AEC-Q100
Package Tape & Reel (TR)
Cut Tape (CT)
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 2
Gate Type N-Channel MOSFET
Voltage - Supply 4.5V ~ 8.8V
Logic Voltage - VIL, VIH 0.8V, 2.1V
Current - Peak Output (Source, Sink) 2A, 2A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 33 V
Rise / Fall Time (Typ) 10ns, 10ns
Operating Temperature -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 8-VDFN Exposed Pad
Supplier Device Package 8-SON (3x3)
Base Product Number TPS28225


Features of TPS28225TDRBRQ1


• Qualified for automotive applications
• Drives two N-channel MOSFETs with 14-ns adaptive dead time
• Wide gate drive voltage: 4.5 V up to 8.8 V with best efficiency at 7 V to 8 V
• Wide power system train input voltage: 3 V up to 27 V
• Wide input PWM signals: 2-V up to 13.2-V amplitude
• Capable of driving MOSFETs with ≥40-A current per phase
• High frequency operation: 14-ns propagation delay and 10-ns rise or fall time allows FSW up to 2 MHz
• Capable of propagating <30-ns input PWM pulses
• Low-side driver sink on-resistance (0.4 Ω) prevents dV/dT related shoot-through current
• Three-state PWM input for power stage shutdown
• Space saving enable (input) and power good (output) signals on the same pin
• Thermal shutdown
• UVLO protection
• Internal bootstrap diode
• Economical SOIC-8 and thermally enhanced 3-mm × 3-mm VSON-8 packages
• High performance replacement for popular three-state input drivers


Decriptions of TPS28225TDRBRQ1


• Multi-phase DC-to-DC converters with analog or digital control
• Synchronous rectification for isolated point of load
• Wireless charging transmitter


Environmental & Export Classifications of TPS28225TDRBRQ1

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001


TPS28225TDRBRQ1 Half-Bridge Gate Driver IC Non-Inverting 8-SON (3x3)


Quality TPS28225TDRBRQ1 Half-Bridge Gate Driver IC Non-Inverting 8-SON (3x3) for sale

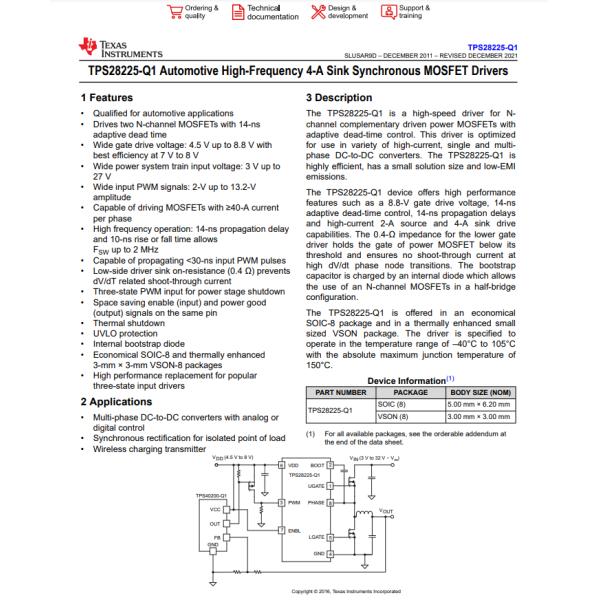

TPS28225TDRBRQ1 Half-Bridge Gate Driver IC Non-Inverting 8-SON (3x3) Images
