LMV321IDBVR General Purpose Amplifier With 1 Circuit Rail-To-Rail SOT-23-5

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

LMV321IDBVR General Purpose Amplifier With 1 Circuit Rail-To-Rail SOT-23-5

Brand Name : original

Model Number : LMV321IDBVR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Amplifier Type : General Purpose

Number of Circuits : 1

Slew Rate : 1V/µs

Gain Bandwidth Product : 1 MHz

Current - Input Bias : 15 nA

Current - Output : 1.7 mV

Current - Supply : 130µA

Current - Output / Channel : 160 mA

Voltage - Supply Span (Min) : 2.7 mV

Voltage - Supply Span (Max) : 5.5 mV

Contact Now

LMV321IDBVR General Purpose Amplifier With 1 Circuit Rail-to-Rail SOT-23-5

General Purpose Amplifier 1 Circuit Rail-to-Rail SOT-23-5

Specifications of LMV321IDBVR

Category Integrated Circuits (ICs)
Instrumentation, OP Amps, Buffer Amps
Mfr Texas Instruments
Series -
Package Tape & Reel (TR)
Product Status Active
Amplifier Type General Purpose
Number of Circuits 1
Output Type Rail-to-Rail
Slew Rate 1V/µs
Gain Bandwidth Product 1 MHz
Current - Input Bias 15 nA
Voltage - Input Offset 1.7 mV
Current - Supply 130µA
Current - Output / Channel 160 mA
Voltage - Supply Span (Min) 2.7 V
Voltage - Supply Span (Max) 5.5 V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case SC-74A, SOT-753
Supplier Device Package SOT-23-5
Base Product Number LMV321

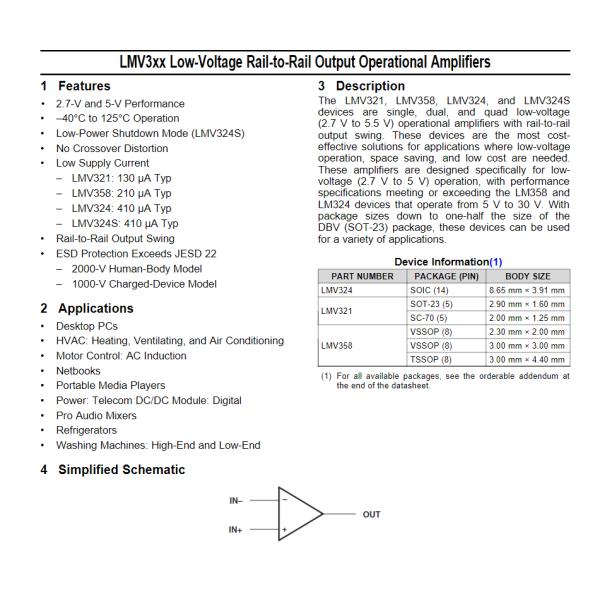

Features of LMV321IDBVR


* 2.7-V and 5-V Performance
* -40°C to 125°C Operation
* Low-Power Shutdown Mode (LMV324S)
* No Crossover Distortion
* Low Supply Current
- LMV321: 130 uA Typ
- LMV358: 210 A Typ
- LMV324: 410 UA Typ
- LMV324S: 410 uA Typ
* Rail-to-Rail Output Swing
* ESD Protection Exceeds JESD
- 222000-V Human-Body Model
- 1000-V Charged-Device Model

Applications of LMV321IDBVR


* Desktop PCs
* HVAC: Heating, Ventilating, and Air Conditioning
* Motor Control: AC Induction
* Netbooks
* Portable Media Players
* Power: Telecom DC/DC Module: Digital
* Pro Audio Mixers
* Refrigerators
* Washing Machines: High-End and Low-End

Environmental & Export Classifications of LMV321IDBVR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001

LMV321IDBVR General Purpose Amplifier With 1 Circuit Rail-To-Rail SOT-23-5
