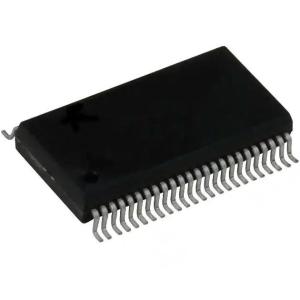

SN74LVC16244ADGGR IC Chip 4 Element 4 Bit Per Element 3-State Output 48-TSSOP

Product Categories

SZ ADE Electronics Co., Ltd

Contact Now

SN74LVC16244ADGGR IC Chip 4 Element 4 Bit Per Element 3-State Output 48-TSSOP

Name: SN74LVC16244ADGGR IC Chip 4 Element 4 Bit Per Element 3State Output 48TSSOP
Brand: original
Price: 1 USD

Brand Name : original

Model Number : SN74LVC16244ADGGR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Number of Elements : 4

Number of Bits per Element : 4

Output Type : 3-State

Current - Output High, Low : 24mA, 24mA

Voltage - Supply : 1.65V ~ 3.6V

Operating Temperature : -40°C ~ 125°C (TA)

Contact Now

SN74LVC16244ADGGR IC Chip 4 Element 4 Bit per Element 3-State Output 48-TSSOP

SN74LVC16244ADGGR IC BUF NON-INVERT 3.6V 48TSSOP

Specifications of SN74LVC16244ADGGR

TYPE	DESCRIPTION
Category	Integrated Circuits (ICs)
Category	Buffers, Drivers, Receivers, Transceivers
Mfr	Texas Instruments
Series	74LVC
Package	Tape & Reel (TR)
Package	Cut Tape (CT)
Product Status	Active
Logic Type	Buffer, Non-Inverting
Number of Elements	4
Number of Bits per Element	4
Input Type	-
Output Type	3-State
Current - Output High, Low	24mA, 24mA
Voltage - Supply	1.65V ~ 3.6V
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	48-TFSOP (0.240", 6.10mm Width)
Supplier Device Package	48-TSSOP
Base Product Number	74LVC16244

Features of SN74LVC16244ADGGR

* Member of the Texas Instruments Widebus T Family
* Operates From 1.65 V to 3.6 V
* Inputs Accept Voltages to 5.5 V
* Max tpd of 4.1 ns at 3.3 V
* Typical VoLP (Output Ground Bounce)<0.8 V at Vcc = 3.3 V, TA = 25'C
* Typical VoHv (Output VoH Undershoot)>2 V at Vcc = 3.3 V, TA = 25°C
* loff Supports Live Insertion, Partia-Power-DownMode, and Back-Drive Protection
* Supports Mixed-Mode Signal Operation on AllPorts (5-V Input/Output Voltage With3.3-V Vcc)
* Latch-Up Performance Exceeds 250 mA PerJESD 17
* ESD Protection Exceeds JESD
-222000-V Human-Body Model (A114-A)
-1000-V Charged-Device Model (C101)

Applications of SN74LVC16244ADGGR

*Servers
*PCs and Notebooks
*Network Switches
*Wireless and Telecom Infrastructures
*TV Set-top Boxes
*Electronic Points of Sale

Environmental & Export Classifications of SN74LVC16244ADGGR

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
