ST7FLITE09M6TR 16SO Microcontroller IC MCU 8BIT 1.5KB FLASH

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

ST7FLITE09M6TR 16SO Microcontroller IC MCU 8BIT 1.5KB FLASH

Brand Name : original

Model Number : ST7FLITE09M6TR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Product Status : Obsolete

Digi-Key Programmable : Not Verified

Core Processor : ST7

Core Size : 8-Bit

Speed : 8MHz

Connectivity : SPI

Peripherals : LVD, POR, PWM, WDT

Number of I/O : 13

Contact Now

ST7FLITE09M6TR Current Sense Resistors Ic Mcu 8bit 1.5kb Flash 16so
ST7 ST7 Microcontroller IC 8-Bit 8MHz 1.5KB (1.5K x 8) FLASH 16-SO

Specifications of ST7FLITE09M6TR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Embedded
Microcontrollers
Mfr STMicroelectronics
Series ST7
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status Obsolete
Digi-Key Programmable Not Verified
Core Processor ST7
Core Size 8-Bit
Speed 8MHz
Connectivity SPI
Peripherals LVD, POR, PWM, WDT
Number of I/O 13
Program Memory Size 1.5KB (1.5K x 8)
Program Memory Type FLASH
EEPROM Size 128 x 8
RAM Size 128 x 8
Voltage - Supply (Vcc/Vdd) 2.4V ~ 5.5V
Data Converters A/D 5x8b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SO
Base Product Number ST7FL

Features of ST7FLITE09M6TR

– 1K or 1.5 Kbytes single voltage Flash Program memory with read-out protection, In-Circuit and In-Application Programming (ICP and IAP). 10 K write/erase cycles guaranteed, data retention: 20 years at 55 °C.
– 128 bytes RAM.
– 128 bytes data EEPROM with read-out protection. 300K write/erase cycles gua

Applications of ST7FLITE09M6TR

Instruction Set
– 8-bit data manipulation
– 63 basic instructions with illegal opcode detection
– 17 main addressing modes
– 8 x 8 unsigned multiply instruction

Environmental & Export Classifications of ST7FLITE09M6TR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001

ST7FLITE09M6TR 16SO Microcontroller IC MCU 8BIT 1.5KB FLASH


Product Tags:

ST7FLITE09M6TR Microcontroller IC



IC MCU 8BIT 1.5KB



16SO Microcontroller IC MCU


Quality ST7FLITE09M6TR 16SO Microcontroller IC MCU 8BIT 1.5KB FLASH for sale

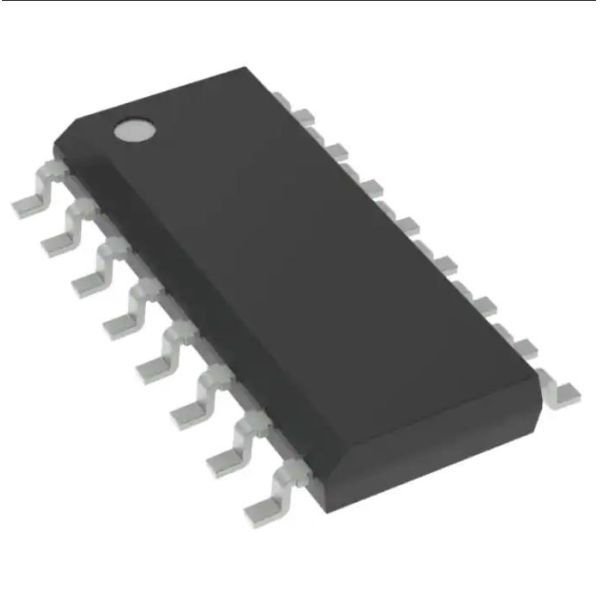

ST7FLITE09M6TR 16SO Microcontroller IC MCU 8BIT 1.5KB FLASH Images
