Tray DC DC Converter 12V PTN78000WAH Non Isolated PoL Module

Name: Tray DC DC Converter 12V PTN78000WAH Non Isolated PoL Module
Brand: original
Price: 1 USD

Brand Name : original

Model Number : PTN78000WAH

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Mfr : Texas Instruments

Series : PTN78000W

Package : Tray

Product Status : Active

Type : Non-Isolated PoL Module

Number of Outputs : 1

Voltage - Input (Min) : 7V

Voltage - Input (Max) : 36V

Contact Now

PTN78000WAH Tantalum Chip Capacitor Dc Dc Converter 2.5-12.6v

Non-Isolated PoL Module DC DC Converter 1 Output 2.5 ~ 12.6V 1.5A 7V - 36V Input

Specifications of PTN78000WAH

TYPE	DESCRIPTION
Category	Power Supplies - Board Mount
Mfr	Texas Instruments
Series	PTN78000W
Package	Tray
Product Status	Active
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	7V
Voltage - Input (Max)	36V
Voltage - Output 1	2.5 ~ 12.6V
Voltage - Output 2	-
Voltage - Output 3	-
Current - Output (Max)	1.5A
Applications	ITE (Commercial)
Features	UVLO
Operating Temperature	-40°C ~ 85°C
Efficiency	91%
Mounting Type	Through Hole
Package / Case	5-DIP Module
Size / Dimension	0.75" L x 0.50" W x 0.34" H (19.1mm x 12.7mm x 8.6mm)
Base Product Number	PTN78000

FEATURES of PTN78000WAH

• 1.5-A Output Current

• Wide-Input Voltage(7 V to 36 V) / (15 V to 36 V)

• Wide-Output Voltage Adjust(2.5 V to 12.6 V) / (11.85 V to 22 V)

• High Efficiency (Up to 95%)

• Output Current Limit ,

• Overtemperature Shutdown

• Operating Temperature: –40°C to 85°C

• Surface Mount Package Available

Applications of PTN78000WAH

• General-Purpose, Industrial Controls,HVAC Systems, Test and Measurement,Medical Instrumentation, AC/DC Adaptors,Vehicles, Marine, and Avionics

Environmental & Export Classifications of PTN78000WAH

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580

Product Tags:

PTN78000WAH

Tray DC DC Converter 12V

12V PTN78000WAH

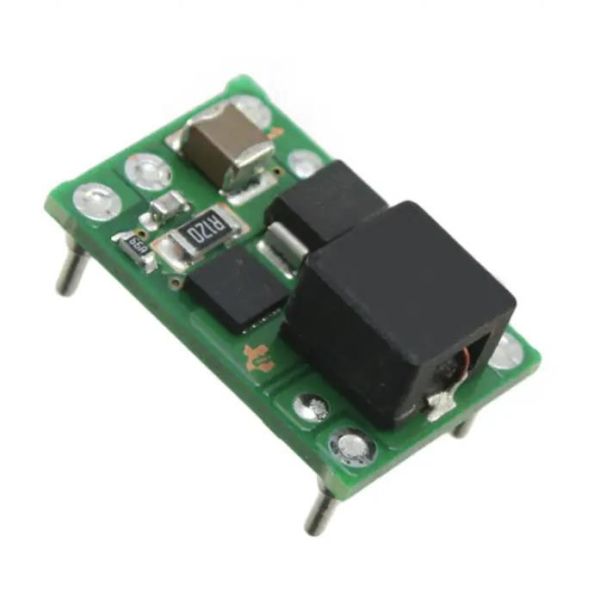

Tray DC DC Converter 12V PTN78000WAH Non Isolated PoL Module Images
