32BIT MCU RH850 F1KM 100PIN 3MB Programmable Logic Chips

Name: 32BIT MCU RH850 F1KM 100PIN 3MB Programmable Logic Chips
Brand: original
Price: 1 USD

Brand Name : original

Model Number : R7F7016443AFP-C#KA1

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Mfr : Renesas Electronics America Inc

Series : Automotive, AEC-Q100, RH850/F1KM-S4-S4

Package : Tray

Product Status : Not For New Designs

Digi-Key Programmable : Not Verified

Core Processor : RH850G3KH

Core Size : 32-Bit Single-Core

Speed : 240MHz

Contact Now

R7F7016443AFP-C#KA1 Tantalum Chip Capacitor 32bit Mcu Rh850/F1km 100pin 3mb

RH850G3KH Automotive, AEC-Q100, RH850/F1KM-S4 Microcontroller IC 32-Bit Single-Core 240MHz 3MB (3M x 8) FLASH 100-LFQFP (14x14)

Specifications of R7F7016443AFP-C#KA1

TYPE	DESCRIPTION
Category	Integrated Circuits (ICs)
	Embedded
	Microcontrollers
Mfr	Renesas Electronics America Inc
Series	Automotive, AEC-Q100, RH850/F1KM-S4
Package	Tray
Product Status	Not For New Designs
Digi-Key Programmable	Not Verified
Core Processor	RH850G3KH
Core Size	32-Bit Single-Core
Speed	240MHz
Connectivity	CANbus, CSI, I²C, LINbus, SPI, UART/USART
Peripherals	DMA, PWM, WDT
Number of I/O	75
Program Memory Size	3MB (3M x 8)
Program Memory Type	FLASH
EEPROM Size	128K x 8
RAM Size	320K x 8
Voltage - Supply (Vcc/Vdd)	3V ~ 5.5V
Data Converters	A/D 16x10b, 16x12b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Package / Case	100-LQFP
Supplier Device Package	100-LFQFP (14x14)
Base Product Number	R7F7016443

FEATURES of R7F7016443AFP-C#KA1

• The RX72N 32-bit MCU is a high-performance product that operates at 240 MHz with a line up max of 224 pins, so you can use many functions without duplicating pins

• Performs TFT display processing that requires high performance, and high-quality audio through the synchronous serial interface (SSI) with one chip

• The HS3004 sensor measures the temperature inside the equipment and helps detect abnormalities

• RX flagship MCU with highest performance

• RXv3 core and high-performance operation at 240 MHz

• 120 MHz RXv2 core MCU

• Large ROM/RAM, enhanced security, connectivity and HMI

• Wide VIN dual-standard Buck regulator with 3 A / 3 A continuous output current

• Efficient asynchronous Buck regulator

• Good for network and communication equipment, industrial control, point-of-load regulators

• Relative humidity and temperature sensor

• High-accuracy humidity and temperature sensing for environmental monitoring

Applications of R7F7016443AFP-C#KA1

This reference design by Renesas is used for a ticket machine used in train stations and utilizes a TFT display for customers to purchase tickets. The reference design also features voice guidance via a speaker and can detect abnormalities inside the device with a temperature sensor. When updating the firmware of this application, this can be rewritten using a USB. Two RX65N 32-bit microcontrollers (MCUs) are used to recognize bills and coins.

Environmental & Export Classifications of R7F7016443AFP-C#KA1

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	3 (168 Hours)
REACH Status	REACH Unaffected
HTSUS	0000.00.0000

32BIT MCU RH850 F1KM 100PIN 3MB Programmable Logic Chips

Product Tags:

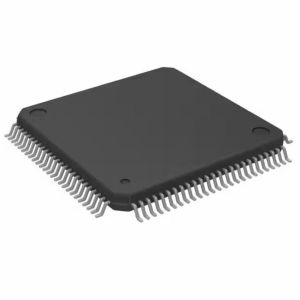

32BIT MCU RH850 F1KM 100PIN 3MB Programmable Logic Chips Images
