LMK61E0-050M00SIAT Clock Oscillator IC Chip 50MHz 6-QFM

Brand Name : original

Model Number : LMK61E0-050M00SIAT

Certification : original

Place of Origin : original

MOQ : 1

Price : negotition

Payment Terms : T/T

Supply Ability : 100,000pcs

Delivery Time : 1-3

Packaging Details : carton box

Frequency : 50MHz

Voltage - Supply : 3.135V ~ 3.465V

Current - Supply : 162 mA

Operating Temperature : -40°C ~ 85°C (TA)

Package / Case : 6-SMD Module

Supplier Device Package : 6-QFM (7x5)

Contact Now

LMK61E0-050M00SIAT Clock Oscillator IC Chip 50MHz 6-QFM (7x5)

IC OSC CLOCK 50MHZ 6QFM

Product Attributes of LMK61E0-050M00SIAT
TYPE
DESCRIPTION
Category
Integrated Circuits (ICs)
Clock/Timing
Programmable Timers and Oscillators
Mfr
Texas Instruments
Series
-
Product Status
Active
Type
Clock Oscillator
Count
-
Frequency
50MHz
Voltage - Supply
3.135V ~ 3.465V
Current - Supply
162 mA
Operating Temperature
-40°C ~ 85°C (TA)
Package / Case
6-SMD Module
Supplier Device Package
6-QFM (7x5)
Mounting Type
Surface Mount
Base Product Number
LMK61

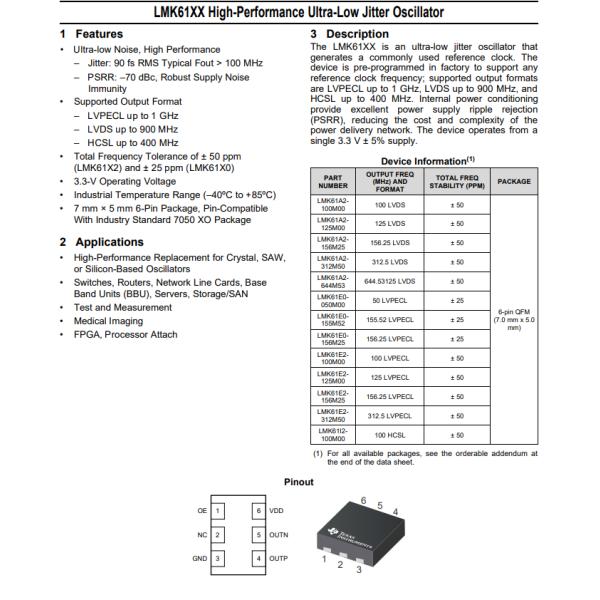

Features of LMK61E0-050M00SIAT

• Ultra-low Noise, High Performance
– Jitter: 90 fs RMS Typical Fout > 100 MHz
– PSRR: –70 dBc, Robust Supply NoiseImmunity
• Supported Output Format
– LVPECL up to 1 GHz
– LVDS up to 900 MHz
– HCSL up to 400 MHz
• Total Frequency Tolerance of ± 50 ppm (LMK61X2) and ± 25 ppm (LMK61X0)
• 3.3-V Operating Voltage
• Industrial Temperature Range (–40ºC to +85ºC)
• 7 mm × 5 mm 6-Pin Package, Pin-Compatible With Industry Standard 7050 XO Package

Applications of LMK61E0-050M00SIAT

• High-Performance Replacement for Crystal, SAW, or Silicon-Based Oscillators
• Switches, Routers, Network Line Cards, Base Band Units (BBU), Servers, Storage/SAN
• Test and Measurement
• Medical Imaging
• FPGA, Processor Attach

Environmental & Export Classifications of LMK61E0-050M00SIAT
ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

LMK61E0-050M00SIAT Clock Oscillator IC Chip 50MHz 6-QFM


Product Tags:

LMK61E0-050M00SIAT



50MHz IC Chip



6-QFM IC Chip


Quality LMK61E0-050M00SIAT Clock Oscillator IC Chip 50MHz 6-QFM for sale

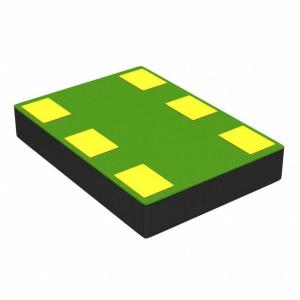

LMK61E0-050M00SIAT Clock Oscillator IC Chip 50MHz 6-QFM Images
